Richmond/Stern patent

Region: United States    Period: 1890–1930    Tag: Underwood

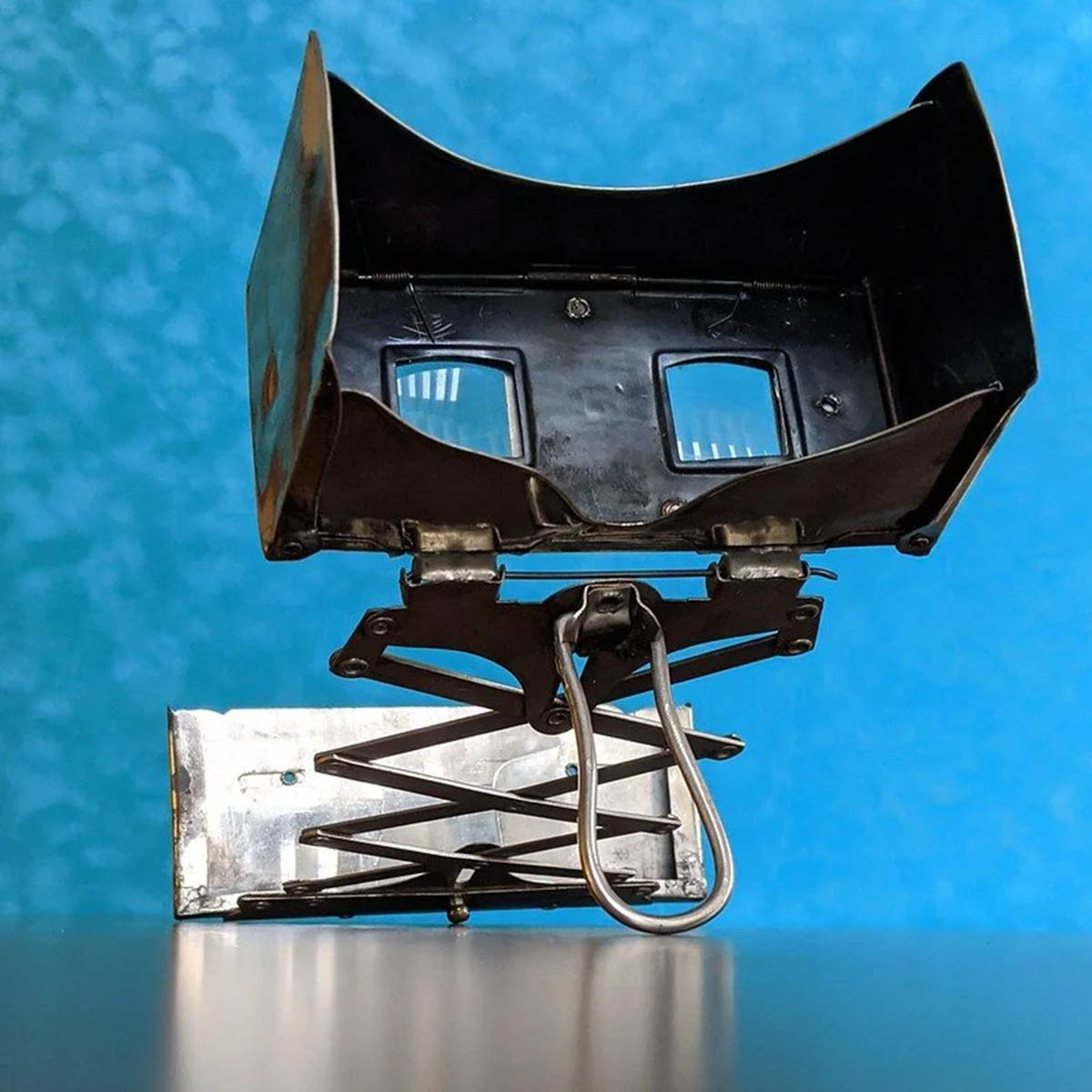

Richmond patent lazy tong
Richmond patent lazy tong
© Vintage 3D Viewer collection

One of the last stereoscope designs by Underwood & Underwood is described in two patents. The first patent, by Henry E. Richmond, describes a collapsible Holmes-Bates stereoscope with a lazy tong mechanism. The second patent of Louis Stern describes a collapsible hood. Both patents were assigned to Underwood & Underwood. The combination of both designs results in a highly compact Holmes-Bates stereoscope.

Related items: Holmes-Bates stereoscope  Lazy tong

Specifications:

Classification:
Hand-held / Single-view / Holmes-Bates
Introduction:
1915
Designer:
Henry E. Richmond
Maker:
Underwood & Underwood
Construction:
Metal
System:
Closed
Medium:
Paper
Format:
8.5 x 17
Lens:
Prismatic
Lens focus:
Yes
Inter-ocular adjustment:
No

Patents and registrations:

Number: 1157419
Stereoscope
Filing: 19-10-1915, Applicant(s): Henry E. Richmond. via: worldwide.espacenet.com

Number: 1197679
Stereoscope
Filing: 12-09-1916, Applicant(s): Louis Stern. via: worldwide.espacenet.com

Further reading:

  • Wing, Paul. Stereoscopes: The first one hundred years (1996) , p. 157

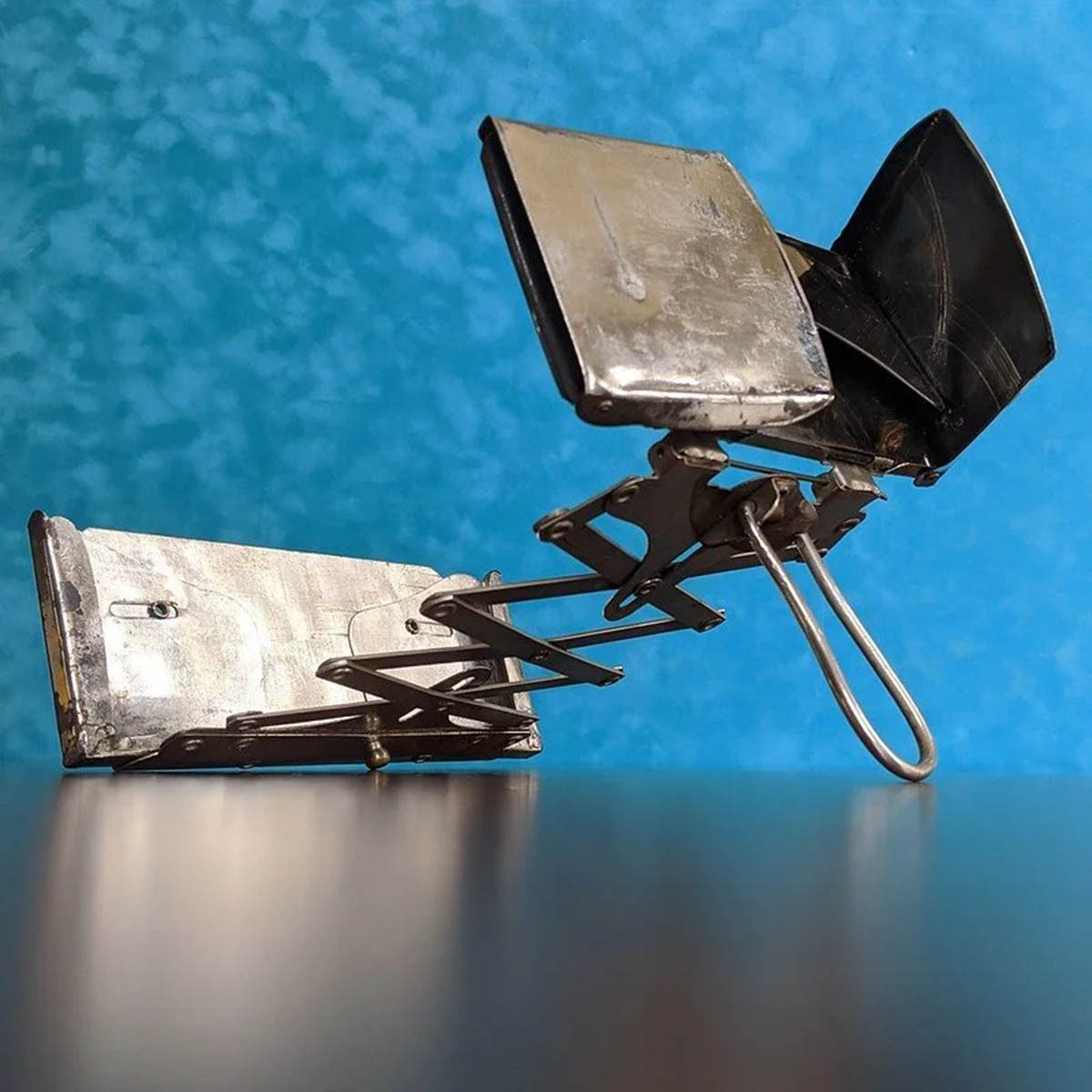

Stern patent collapsible hood
Stern patent collapsible hood
© Vintage 3D Viewer collection
Published: 19-05-2026
