Combination Stereoscope

Region: United States    Period: 1850–1890    Tag: Lewis

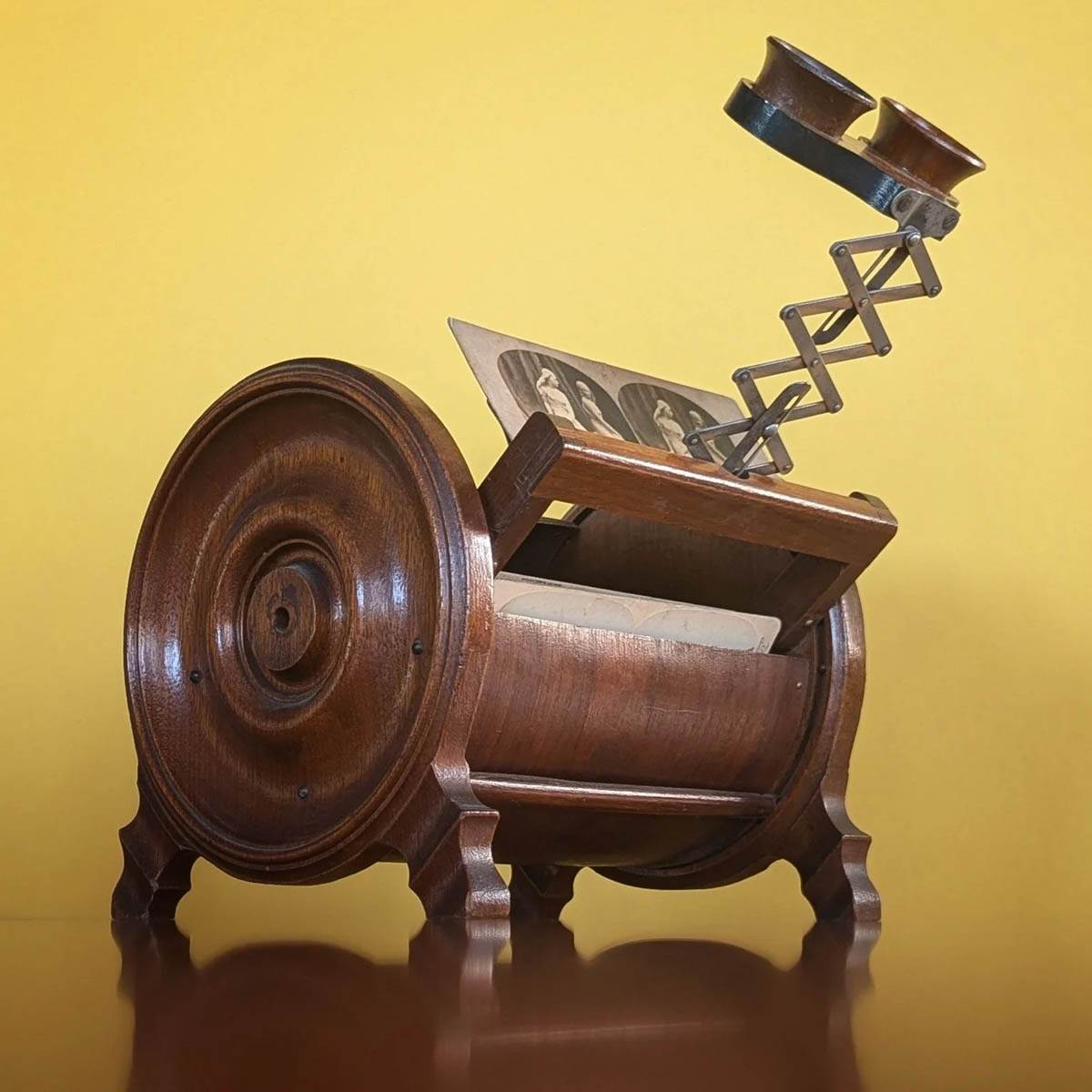

Combination stereoscope, E. & H. T. Anthony, United States
Combination stereoscope, E. & H. T. Anthony, United States
© Vintage 3D Viewer collection

The design of the Combination Stereoscope was patented by William H. Lewis, but the patent was assigned to E. & H. T. Anthony.

The Combination Stereoscope consists of a wooden drum with a cylindrical lid. The drum provides space for the viewer and a collection of paper stereoviews. The lens panel is attached to extendable metal lazy tongs, based on an 1870 design by E. K. Page.

In another model, the lens panel is mounted between two extendable rods on either side of the lenses, and there was a model in which the viewer was mounted on a more basic wooden box.

Related items:
Anthony, E. & H.T.  Lazy tong  Lewis family

Specifications:

Classification:
Tabletop / Single-view
Introduction:
1878
Designer:
William. H. Lewis
Maker:
E. & H. T. Anthony
Construction:
Wood
System:
Open
Medium:
Paper
Format:
8.5 x 17
Lens:
Convex
Lens focus:
Yes
Inter-ocular adjustment:
No

Patents and registrations:

Number: 104990
Stereoscope
Filing: 05-07-1870, Applicant(s): E. K. Page. via: worldwide.espacenet.com

Number: 201804
Stereoscope
Filing: 26-03-1878, Applicant(s): William H. Lewis. via: worldwide.espacenet.com

Further reading:

  • Wing, Paul. Stereoscopes: The first one hundred years (1996) , pp. 128-129
Combination stereoscope, E. & H. T. Anthony, United States
Combination stereoscope, E. & H. T. Anthony, United States
The viewer is attached to a box instead of a drum.
© Vintage 3D Viewer collection
