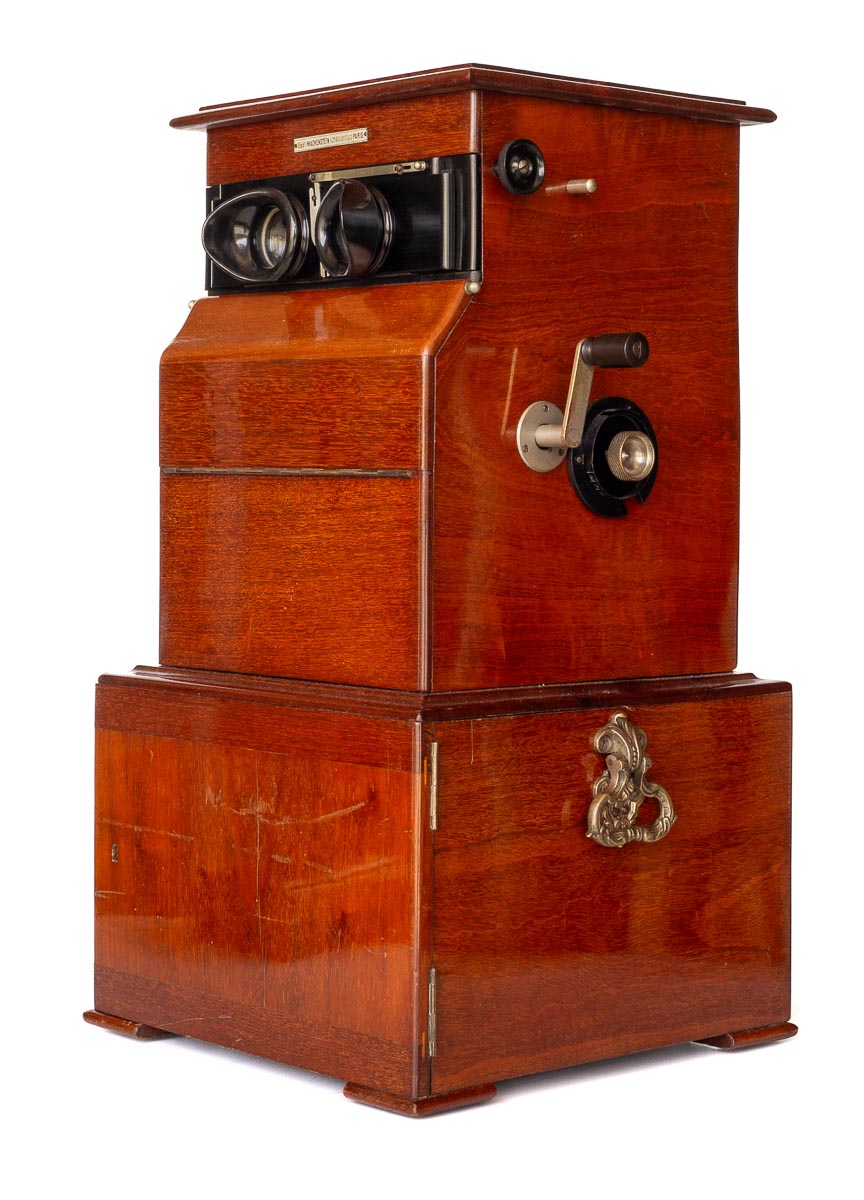

Stéréo-Classeur Mackenstein
Region: France Period: 1890–1930 Tag: Mackenstein
© Stereoscopy History
Mackenstein’s Stéréo-Classeur has a more conventional mechanism than the Stéréoscope-Classeur Portatif of the same manufacturer.
Operation:
To load the device, the front panel is opened and a tray of 25 glass slides can be inserted. By turning a side lever, one of the images is pushed upwards from the tray by two metal fingers from below, allowing it to be viewed. Continuing turning the lever returns the slide to the tray, which then shifts slightly forward to position the next image. A pull knob on the side allows the tray to be advanced or reversed rapidly, making it possible to jump directly to a specific image.
Specifications:
Classification:
Tabletop / Multi-view / Tray-based
Introduction:
c. 1911
Designer:
Mackenstein
Maker:
Mackenstein
Construction:
Wood
System:
Closed
Medium:
Glass
Models for the formats:
45 x 107, 6 x 13, 7 x 13
Number of slides:
25
Bidirectional navigation:
No
Lens:
Convex
Lens focus:
Yes
Inter-ocular adjustment:
Yes
Further reading:
- Wing, Paul. Stereoscopes: The first one hundred years (1996) , pp. 186-188
Published: 20-03-2026
